Automotive Clock Spring Replacement

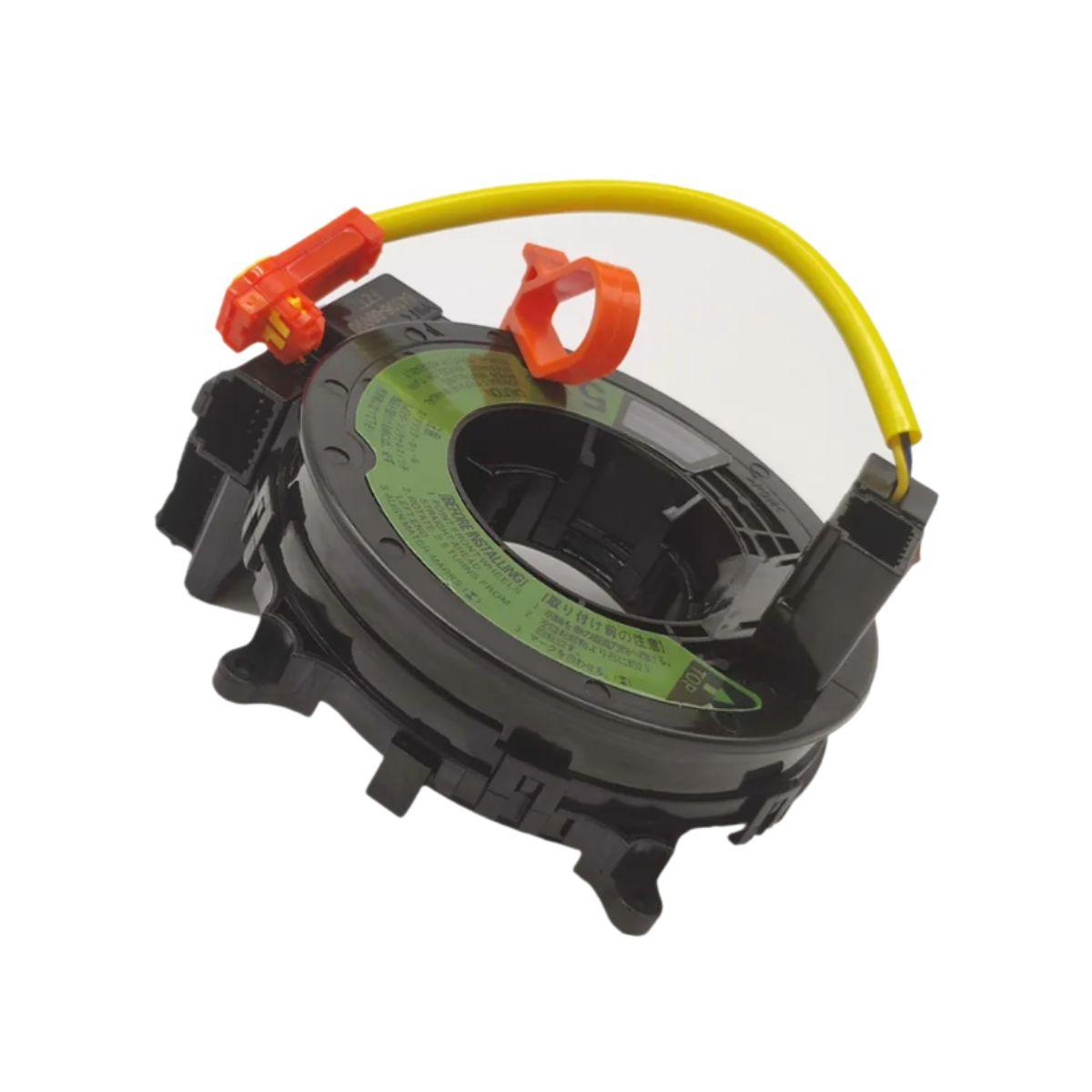

84306-60090 Clock Spring to fit Toyota Landcruiser HDJ100R HZJ105R UZJ100R

(3 customer reviews)


Clock spring part number 84306-60090 / 84306-60071 to fit some 100 series Toyota Landcruiser vehicles manufactured from 1998 to 2007.

SKU: 84306-60090 Categories: ,


New clock spring part number 84306-60090 / 84306-60071 to fit some Toyota Landcruiser vehicles.

Fits some 100 series models from dates 01/1998-07/2007.

When it comes to connecting the steering wheel to other electrical devices like the airbag safety system, radio volume and station selectors, cruise controls, and horn, a clock spring is used. However, if the wires in the clock spring wear down and break, it can lead to a short or open circuit that causes issues like the failure of the horn, radio controls, cruise controls, and the activation of the airbag warning light.

Given that the clock spring is responsible for two safety devices- the airbag safety system and horn- it’s highly recommended to replace a faulty clock spring with a new unit as soon as possible.

Part Numbers

Please double check the vehicle’s original clock spring part number before purchasing this part. If you are not sure if this is the correct part, you can confirm by using this link.

Enter the VIN number and then go to → 4. Electrical → 84-01: Switch & relay & computer → Steering. The clock spring is listed as → cable sub-assy spiral.

If you are unable to find the clock spring part number, please message us with the vehicle’s 17 digit VIN and we will confirm.

Methods of Payment

We offer different payment options to make your purchase convenient and secure.

You can choose to make a direct bank transfer using your order ID as the payment reference. Please note that we will only ship your order upon clearing of the funds in our account.

Alternatively, you can pay online using your American Express, MasterCard or Visa credit card.

We also accept payment via PayPal, which ensures the privacy of your financial information and provides 100% protection against unauthorised payments.

Another option is to use Afterpay, which allows you to pay for your order in four interest-free instalments.

Delivery Information

We strive to dispatch in-stock items before 2 pm AEST on the same business day. If you place an order after 2 pm AEST, the courier or Australia Post will collect it on the next business day. After we pack your order, we will send you a confirmation email with a tracking number. You can track your package using the link provided in the email. Please note that it may take up to 24 hours for your parcel to register in the system.

To avoid any redelivery delays, it is recommended that you choose a location that is attended during business hours, such as your home or work address. For urgent deliveries, select Express postage during the checkout process.

We also deliver parcels to PO Box addresses, and remote locations within Australia have flat rate shipping included, although it may take slightly longer to arrive.

We offer international delivery, and the shipping cost will be calculated automatically during the checkout process.

To keep shipping costs down, we may remove larger items from their original packaging, but we will ensure that the product is sufficiently protected during transit.

Additional information

Weight 0.4 kg
Dimensions 20 × 16 × 16 cm

Model Dates: Matching Models: Model Options:
08/2000-07/2002 HDJ100L-GCMRZW STD, EUR, LHD, 1HDFTE, MTM, 5F
07/2003-04/2005 HDJ100L-GNAEZW VX, EUR, LHD, 1HDFTE, ATM, 5FC
08/2002-04/2005 HDJ100L-GNMEZW VX, EUR, LHD, 1HDFTE, MTM, 5F
08/2002-06/2003 HDJ100L-GNPEZW VX, EUR, LHD, 1HDFTE, ATM, 4FC
05/2005-07/2007 HDJ100R-GNAEZW VX, EUR, RHD, 1HDFTE, ATM, 5FC
01/1998-07/2002 HDJ100R-GNMEZW VX, EUR, RHD, 1HDFTE, MTM, 5F
08/2002-06/2003 HDJ100R-GNPEZW VX, EUR, RHD, 1HDFTE, ATM, 4FC
08/2002-04/2005 UZJ100L-GNAEKW VX, EUR, LHD, 2UZFE, ATM, 5FC
08/2002-04/2005 UZJ100R-GNAEKW VX, EUR, RHD, 2UZFE, ATM, 5FC


12 Months
